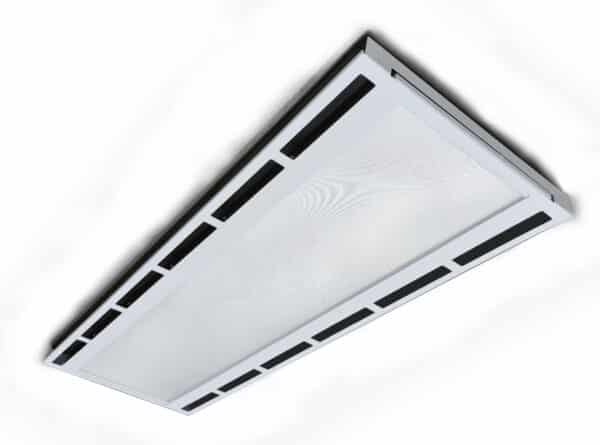

NovaBlade Return Air Fixture

Product Code: LL9-P3-RA

NovaBlade Return Air Fixtures products utilise the latest developments in LED and offer among the highest energy to light conversions currently available. Made to be environmentally friendly with no glass to break, no dangerous chemicals, and no risk from exposed voltages.

  • Suits T Bar ceiling grid mounting
  • Ideal alternative to troffer with air handling
  • Standards configuration suits ceiling void return air applications
  • Standard configuration includes masking baffles
  • Fixture includes Novablade LED panel
  • Come with a seven year warranty*

NovaBlade 3.0 products are 1-10V dimmable as standard. DALI dimming optional. Better control your powered environment and minimise energy costs using
advanced wireless control systems. Contact Verbatim for further information.

• Available in 18W up to 40W
• Up to 110lm/W
• Colour Temperatures: 4000K
• Projected Lifetime L80B10: 74,000 hours
• Colour rendering CRI > 90
• Beam angle 120º
• 1-10V dimming capability as standard
• COI complaint
• IP40 Protection rating
• Thin and light weight
• Flicker Free
• IPART and VEU Approved+
• Air handling slots can be designed to suit air-boots upon request
• Black baffles are included to minimise light spill and prohibit
any view into the ceiling cavity
• Seven Year Warranty*

* Refer to warranty page on the website for Terms & Conditions

Overview

Product Code: LL9-P3-RA

Type Of Product:

CCT:

Brand:

Area of illumination:

1157 x 180mm, 557 x 180mm

Control:

, ,

System Wattage:

, , ,

Luminaire Output:

, , , , ,

finish:

White

CRI:

Beam Angle:
