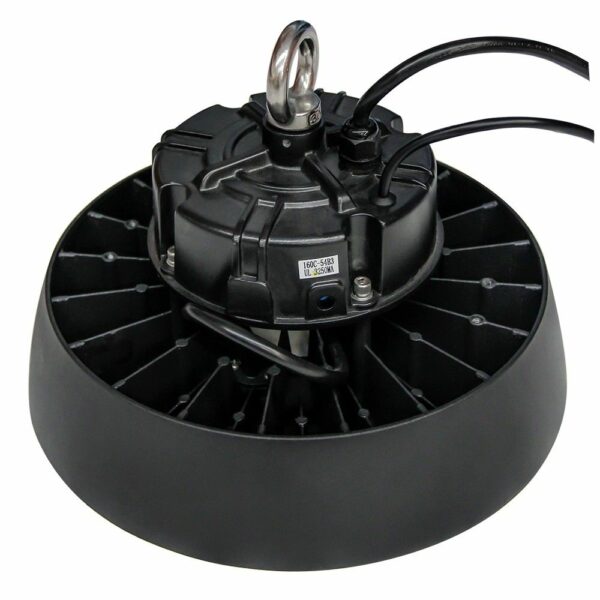

LED Highbay
Product Code:
LED-HIGHBAY
Long lifespan, 30,000 hours
200-240V input
110° beam angle
Separate chamber for LED driver for better dissipation
1-10V dimmable via remote and sensor only
-20°C to 45°C operating temperature
IP65 waterproof
IK10 impact protection
Remote and sensor as accessories are available
System Wattage
Choose an option
100W
150W
Clear
Features
Voltage:
200-240V
Power Factor:
>0.9
Operating Frequency:
50/60 Hz
CRI:
>80
CCT:
5000K – Daylight
Luminous Intensity (cd):
5500 Cd (66530) / 7800 Cd (66531) / 10500 Cd (66532)
Beam Angle (°):
110°
Lifetime:
30,000 hours
Tech Specs
Overview
Product Code: LED-HIGHBAY
Type Of Product:
exterior
,
Highbay
Brand:
Verbatim
System Wattage:
100W
,
150W
CCT:
5000k
Luminaire Output:
15000lm, 22500lm, 30000lm
Beam Angle:
110°
CRI:
>=80
Lifetime:
30000 hours
finish:
Daylight
Downloads
66530.pdf
pdf
66531.pdf
pdf
66530_66531_66532_ip65-ufo-highbay_datasheet.pdf
pdf
LED Highbay IES Files
zip
Features
Tech Specs
Downloads
Voltage:
200-240V
Power Factor:
>0.9
Operating Frequency:
50/60 Hz
CRI:
>80
CCT:
5000K – Daylight
Luminous Intensity (cd):
5500 Cd (66530) / 7800 Cd (66531) / 10500 Cd (66532)
Beam Angle (°):
110°
Lifetime:
30,000 hours
Overview
Product Code: LED-HIGHBAY
Type Of Product:
exterior
,
Highbay
Brand:
Verbatim
System Wattage:
100W
,
150W
CCT:
5000k
Luminaire Output:
15000lm, 22500lm, 30000lm
Beam Angle:
110°
CRI:
>=80
Lifetime:
30000 hours
finish:
Daylight
66530.pdf
pdf
66531.pdf
pdf
66530_66531_66532_ip65-ufo-highbay_datasheet.pdf
pdf
LED Highbay IES Files
zip
