Product Code: FV-Q

The quantum uses a narrow aperture body to project light across a wide area while limiting glare. trim options of black or white and a reflector in black provide a smooth transition from ceiling to light source.
The quantum has a simple yet elegant design and the blend of quality components and high-CRI light sources elevates the quantum above the pack.

  • System wattage: 3W, 6W, 10W, 20W, 30W
  • Luminaire output: 160lm – 2100lm
  • CCT: 2700K, 3000K, 3500K, 4000K
  • Optics: 15°, 30°, 45°, wall-wash in 10W upwards
  • CRI: >90
  • Control: non-dim, 1-10V, Triac, DALI, Casambi
  • Operating voltage: 240Vac
  • Finish: white, black
  • Housing: aluminium and PC
  • Diffuser: high transparency optical lens
  • Enclosure protection: IP20
  • Operating temp: 25ºC
  • Lifetime: 40,000hrs
  • Warranty: 5 years

Product Code: FV-Q

Type Of Product:


System Wattage:

, , , ,

Beam Angle:

, , ,



IP Rating:


Black, Grey, White

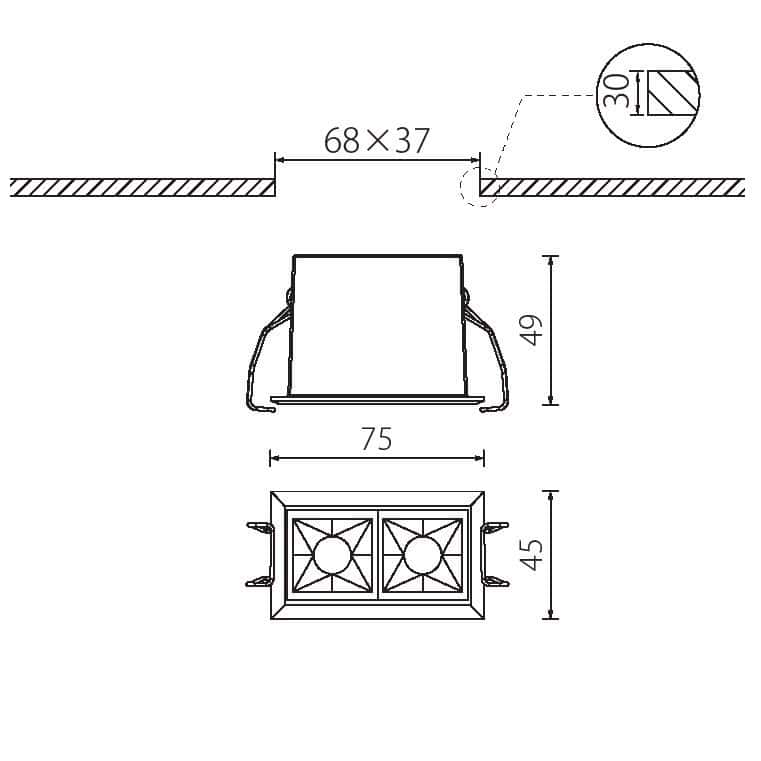

Dimensions (L x D):

140x37mm, 273x37mm, 37x37mm, 405x37mm, 68x37mm


Casambi, DALI, Non-Dim, Triac
