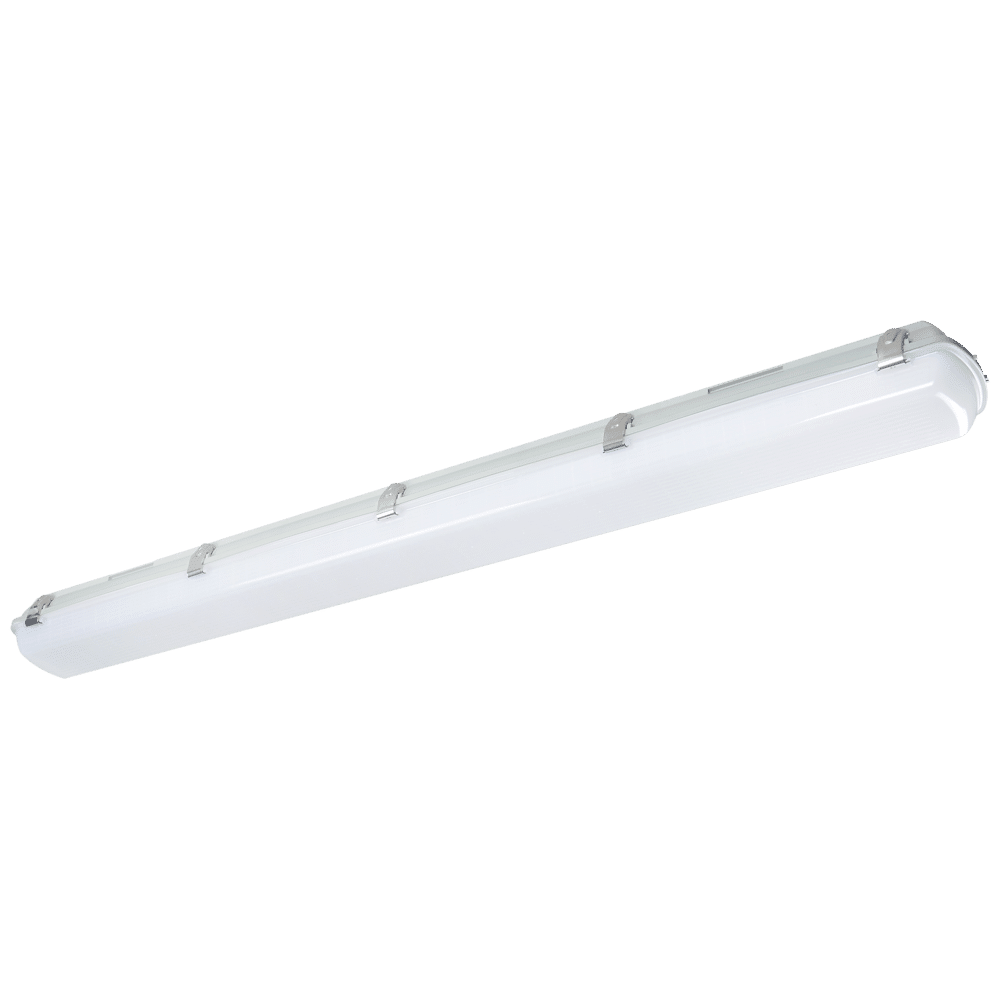

Linear Q Battens Weatherproof Gen 3

Product Code: LL4LQ3W

There’s Weatherproof, and then there’s Linear-Q Gen 3 Weatherproof. Linear-Q Gen 3 Weatherproof Battens are part of the Lumex Tough Team.
They are weatherproof, dust proof and vandal resistant. Great for exterior areas exposed to the weather and other adverse conditions, where safety and security makes reliability a must.
Weatherproof battens are an important component of any commercial lighting specification, whether for the parking areas, service areas, or for safety and security.
These are often the type of fixtures that are working for long hours, often 24/7. These are the type of applications that really benefit form the low energy consumption and low maintenance requirements of quality LED products. The Weatherproof Linear-Q Gen 3 is HACCP certified to be used in food handling facilities.
But Lumex has not been content to insert the standard LED replacement tubes in a weatherproof fixture. Linear Weatherproof use a driver separate to the tube, allowing it to be larger and better suited to commercial applications. This truly commercial design also allows Lumex to continue to extend its renown 7 year warranty to this range*.

  • Range: 16W up to 35W
  • Dual wattage – 1200mm version
  • Up to 150lm/W
  • Tri Colour (4000K, 5000K, 6000K)
  • Colour rendering CRI>80
  • LM80 projected LED lifetime L70 @85°C >60,000 hours
  • Stainless Steel Clips
  • IP65 and IK08 Rating
  • Flicker Free
  • 1-10V dimming capability as standard
  • Casambi available on request
  • Motion Sensing Versions available with optional Remote control
  • Emergency options available
  • HACCP Certified – suitable for use in food production and food handling facilities
  • Combined Motion Sensing and Emergency versions available (1200mm version only)
  • Seven year warranty*

*Seven year warranty is based on maximum usage of 35,000hrs, Motion Sensing version is 5 years warranty based on 25,000hrs and Emergency.


Product Code: LL4LQ3W

Weight: 1.25 g
Type Of Product:




1-10V Dimmable


Grey and Opal



Input Voltage:

220 – 240Vac

Power Factor:




Beam Angle:

Impact rating:


Power connection:

Direct Connection

Operating Range Ta:

-20°C ~ 45°C (Standard Version) / 0°C ~ 40°C (Emergency Version)

Standard Accessories:

Product comes with standard mounting clips which allow for chain suspension

Optional Accessories:

Remote control for sensor versions



Electrical Safety:

AS/NZS 60598.2.1, AS/NZS 60598.1 and AS 60598.2.22 (Emergency Version


16W, 16W/30W, 17W, 17W/30W, 19W/35W


2400lm, 2400lm/4500lm


Microwave, N/A


N/A, Yes


1200mm, 600mm


1.25kg, 1.3kg, 2.5kg
